Bearing ring checking automatic measuring station

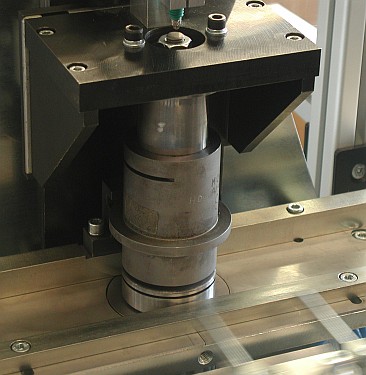

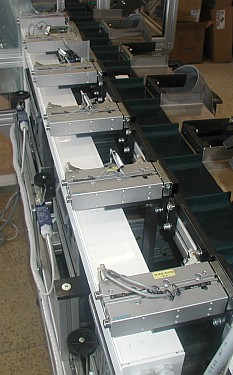

Automatic station is made of AL-profile frames, control section and an appropriate mechanics for input and output handling. Internal piece diameter is defined as sorting parameter of the components. At the measuring station output, there are six loaders enabling ring size detection and the only one detects ring defects. The station is also equipped with Ethernet network interface so as to be connected to internal LAN net.

Overall view
